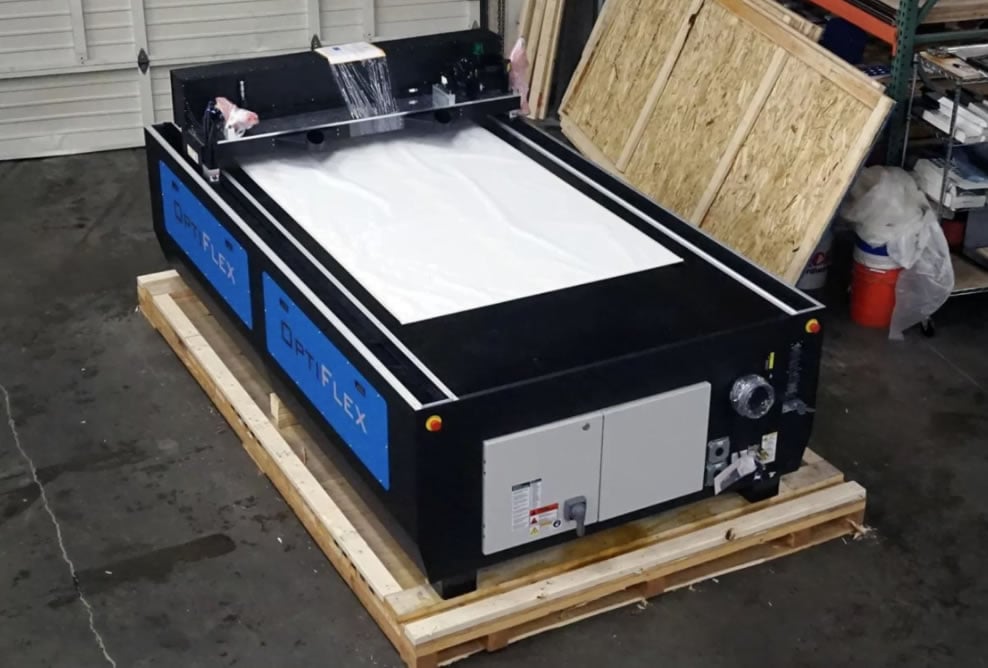

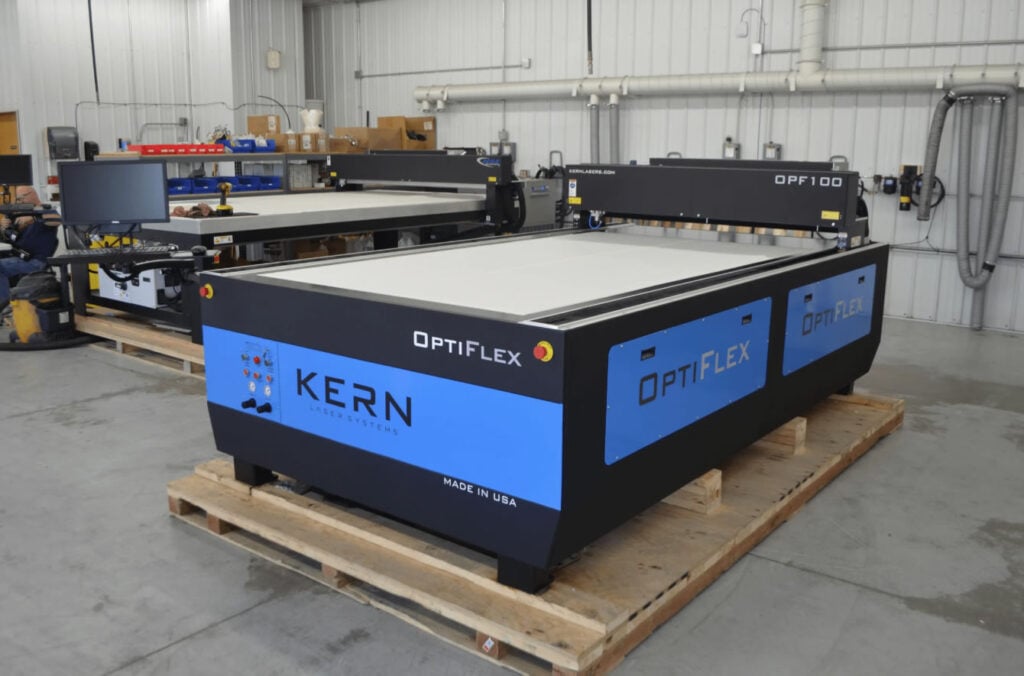

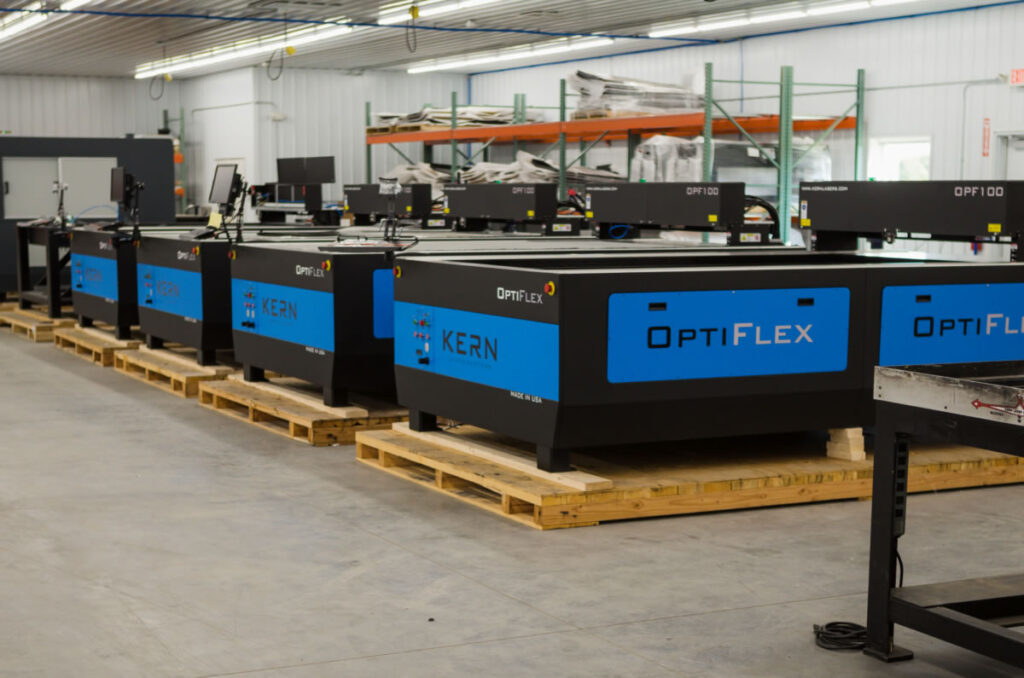

OptiFlex - Laser Cutting & Engraving System

The OptiFlex is an industrial large-format CO2 laser cutting system. The HyperDual motion package debuts on the OptiFlex and is setting the standard for large format laser cutting and engraving across the world. This improved motion system features a rack and pinion design and powerful servo motors on both the X and Y axis. Cut acceleration rates are up to three times faster with a 100% increase in top end vector speed. The X axis has also been upgraded with twin linear rails and a thicker steel reinforced belt. An advanced safety package can be added to the OptiFlex for high traffic working environments.

Standard features included with the OptiFlex large format laser system are a water chilling unit, vacuum blower package, computer/monitor package and design software.

Whether you are a sign shop, metal fabricator or educational institute the OptiFlex laser system should be your machine of choice!

Materials

Cut
Engrave
Acrylic
Mild Steel
Stainless Steel
Aluminum
Anodized Aluminum
Brass
Wood
Foam
Leather
Stone

Specifications

Laser Classification: Class 4 CO2 Laser

Laser Wattage: 100 – 650 watts

*Positioning Accuracy: +/- 0.002 in/ft

Repeatability: +/- 0.0005 in/ft

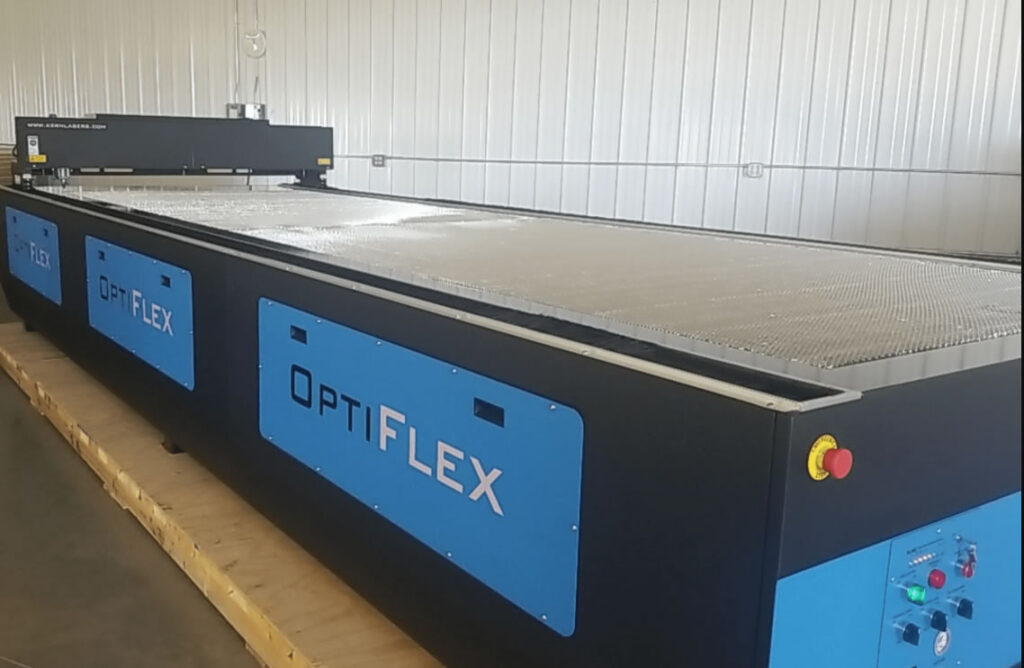

Work Area*: 52″ x 50″ – 86″ x 144″

Footprint (W x L x H): 74″ x 87″ x 53″ – 112″ x 181″ x 53″

**Part Clearance: 3″

Electrical: 230v/1ph, 230v/3ph, 415v/3ph CE, 480v/3ph

*Mapped Table under controlled conditions

**Custom gantry heights by request.

table sizes all 2

OptiFlex LARGE FORMAT Laser Cutting & Engraving System

If your shop requires a large-format laser solution, the OptiFlex could be your next machine of choice.

Standard Features

Optional packages

Metal Cutting

Kern’s CO2 laser format laser systems can be equipped with innovative metal cutting technology. The metal cutting option provides accurate cutting of sheet metals such as stainless steel, mild steel, aluminum, and brass.

Air Assist

High Pressure assist gas, such as oxygen, CDA(clean dry air) or nitrogen, is injected through the metal cutting nozzle. The result is a dross free cut edge that requires little to no deburring.

Auto-Focusing

As the cutting process begins, the height follower tracks the surface of the metal and adjust the nozzle in the z-axis maintaining a constant focus point while the metal is being cut.

To learn more about the Metal Cutting, please watch this video and visit our Metal Cutting page.

ADDITIONAL FEATURES

Optional Add-Ons

AD2000

Fume Extraction

A Fume Extractor can be connected to Kern’s laser systems to remove fumes and small debris creating during laser processing. Instead of ducting the fumes to the outside, the fume extractor cleans the fumes with a series of filters and recycles the air back into the room.

An inline Spark Arrestor can be added for applications which involve metal cutting. The spark arrestor is designed to dramatically reduce the amount of sparks that enter the fume extraction duct.

To learn more about Fume Extraction packages, please review our “Let’s Talk Fumes” section on our Laser Safety page and our Laser Processing Fume Removal blog.
